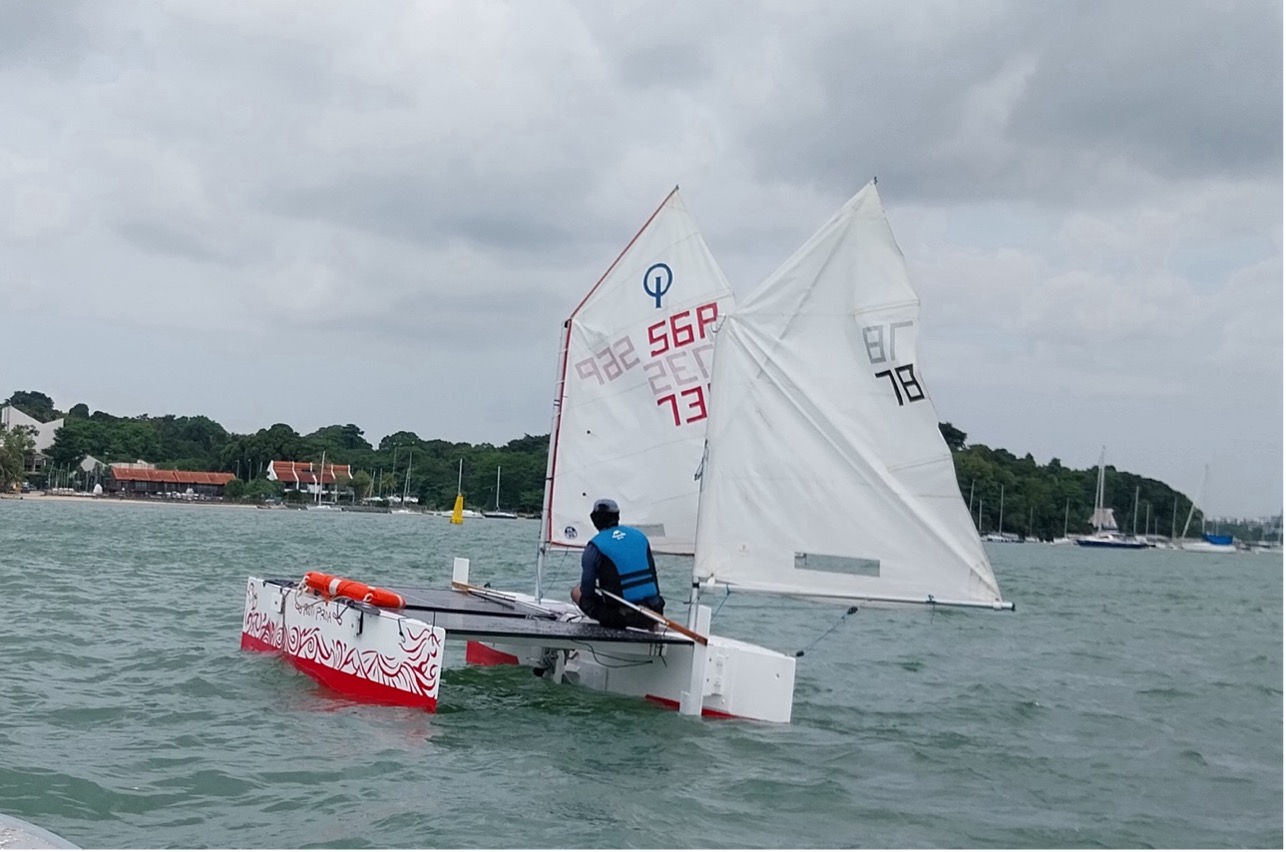

Roti Proa I, helmed by Solar Proa Advisor Abdullah Farid, conducting performance testing on May 30, 2025
Overview
Status: ✅ Completed and tested (December 2024 - June 2025)
Roti Proa I was our proof-of-concept prototype that validated the feasibility of combining traditional outrigger design with modern solar-electric propulsion in tropical waters. The 4.2-meter vessel successfully demonstrated the core principles that inform our larger commercial designs.
Key Achievements:
- Sea trials validated in Singapore waters near Changi
- Top speed: 6.5 knots (12 km/h) under electric power
- Solar capacity: 1 kW peak (2 panels)
- Propulsion: 2 kW electric outboard motor
- Batteries: 2 x 50 Ah, LiFePO₄
- Sailing rig: Dual independent sport rigs (Optimist) for experimental configuration
The prototype proved that solar proas are viable for tropical Southeast Asian waters and provided crucial data for scaling up to the 9-meter Roti Proa II design.
Featured Publication
For a detailed account of the Roti Proa I development, testing, and lessons learned, read the full article published by the Changi Sailing Club in Singapore:
Roti Proa: An Experimental Wind and Solar Powered Boat
This comprehensive article covers:
- Design philosophy and traditional influences
- Construction process and material choices
- Sea trial results and performance data
- Lessons learned for future development
- Technical challenges and solutions
Quick Specifications
| Specification | Value |
|---|---|
| Overall Length (LOA) | 4.2m |
| Beam | 2.5m |
| Solar Power | 1kW peak |
| Motor Power | 2kW electric outboard |
| Battery Type | LiFePO₄ |
| Top Speed | 6.5 knots |
| Crew | 1-2 persons |
| Status | Testing completed June 2025 |
Legacy & Impact
Roti Proa I’s successful trials provided the confidence and empirical data needed to pursue commercial-scale development. The prototype demonstrated that:
✅ Solar-electric propulsion is viable in tropical waters
✅ Traditional outrigger designs adapt well to modern electric systems
✅ Shunting proas can effectively integrate solar panels
✅ The combination creates a compelling eco-tourism experience
These insights directly informed the design of Roti Proa II and validate our approach for the 13-meter Roti Proa III.
Funding & Support
Roti Proa I was funded through:
- Maybank Green Fund: S$5,000 (via NUS Office of Student Affairs)
- Private donations and sponsorships: S$7,000
- Total project cost: S$12,000
